Spunbonded nonwoven filter cloth for pleated style filter cartridges production

Zonel Filtech provide good quality polyester spunbonded nonwoven fabrics for industrial filtration application. (filter cartridge media)

The polyester spun bonded filter cloth with the special designed pattern, combined with the 3D spunbonded lapping workmanship, make the spun bonded filter cloth from Zonel Filtech with the properties of good air permeability; high filter efficiency; high stiffness and not easy to change the shape once pleated; big particles load and durable for various industrial applications. The spun bonded polyester nonwovens from Zonel Filtech can be finished with PTFE membrane laminated, water & oil repellent, and laminated with aluminum foil for anti-static and so on to meet the different requirements from different operate conditions.

Besides the spunbonded filter cloth, Zonel Filtech also provide the sound quality membrane support layer for pleated type filter cartridges.

  • Pictures
  • Polyester Spunbonded Filter Cloth
  • Spunbonded membrane support layer
Spunbonded nonwoven filter cloth for pleated style filter cartridges production
The filter cartridges, made from the anti-static spunbonded filter cloth.

  • Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    The filter cartridges, made from the anti-static spunbonded filter cloth.
  • Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    The filter cartridges made from the spunbonded filter cloth.
  • Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    The pleated spunbonded filter cloth for filter cartridges production.
  • Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Polyester spunbonded filter cloth for filter cartridges production.
  • Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded filter cloth with water and oil repellent, for pleated filter cartridges production.
  • Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded filter cloth with aluminum foil coating, anti-static filter cloth for filter cartridges.
  • Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunboned filter cloth for fine particles collection, for pleated filter cartridges production.
  • Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Nonwoven support material, nonwoven fabric support, membrane support layer, PET filament support nonwoven, reinforcement material, supporting material, polyester spunbonded.
  • Liquid filter cartridges
    Spunbonded nonwoven filter cloth for pleated style filter cartridges production
    Micro pore filter membrane pleated filter cartridges.
Spun Bonded Filter Cloth

Spunboned filter cloth for filter cartridge production

Zonel Filtech developed the A serial polyester spunbonded filter material, which with the special designed pattern combined with the 3D spunbonded lapping workmanship to make the spun bonded filter cloth from Zonel Filtech with following properties when compare with the traditional spunbonded filter media:

1. Good air permeability but with super filter efficiency.
After testing, the result shown that the A serial polyester spunbonded filter cloth with the similar weight always can get a better filter efficiency, but the air permeability is more than 90% higher than the traditional spunbonded polyester nonwovens, that’s mean the A serial filter cartridge media can handle the much higher air volume but with a much lower resistance in cartridge filter housing under the same filter area basis, that can help to offer a most economical but better filter solution for our end users.

2. High tensile strength.
After testing, the result shown that for the similar weight spunbonded filter cloth, the tensile strength of A serial polyester spunbonded filter material is more than 90% higher than the traditional spunbonded filter cloth, that’s mean the A serial filter cartridge media can stand the higher pulse jet purging presure and not easy to be broken, can get a longer service life of course.

3. Super stiffness
As usual, for increase the filter area of the filter cartridge, we will pleat the spunbonded filter cloth with certain pleats on the pleating machine, the super stiffness of the spunbonded filter media sure can help to make the filter cartridge always keep a correct shape and get a stable working performance.

4. Higher dust loading
The A serial polyester spunbonded filter cloth with 3D construction, much better on the dust loading capacity, can adopt the longer purging time, also not easy to cause secondary dust releasing, increase the service life of the filter cartridges.

The spunbonded filter cloth from Zonel Filtech can design with many finish treatments, such as to be treated with PTFE coating/ PTFE membrane laminated (spun bonded with PTFE membrane), water & oil proof(spun bonded water repellent media), and antistatic by aluminum foil (spun bonded anti-static filter cloth) and so on, the filter fineness from 0.1 micron to 10 micron, filter efficiency always more than 99%.

1. Normal polyester spunbonded filter cloth.
Spunbonded filter cloth for filter cartridge production

Spunbonded filter cloth for filter cartridge production

2. AL-Membrane Antistatic Spunbonded Polyester Filter Cloth.
Spunbonded anti-static filter cloth for filter cartridge production

Spunbonded anti-static filter cloth for filter cartridge production

3. Water & Oil Repellent Treatment Spunbonded Polyester Filter Cloth.
Spunbonded filter cloth with water and oil repellent for filter cartridge production

Spunbonded filter cloth with water and oil repellent for filter cartridge production

4.PolyesterSpunbonded Filter Cloth with PTFE membrane.
Spunbonded filter cloth with PTFE membrane for filter cartridge production

Spunbonded filter cloth with water and oil repellent for filter cartridge production

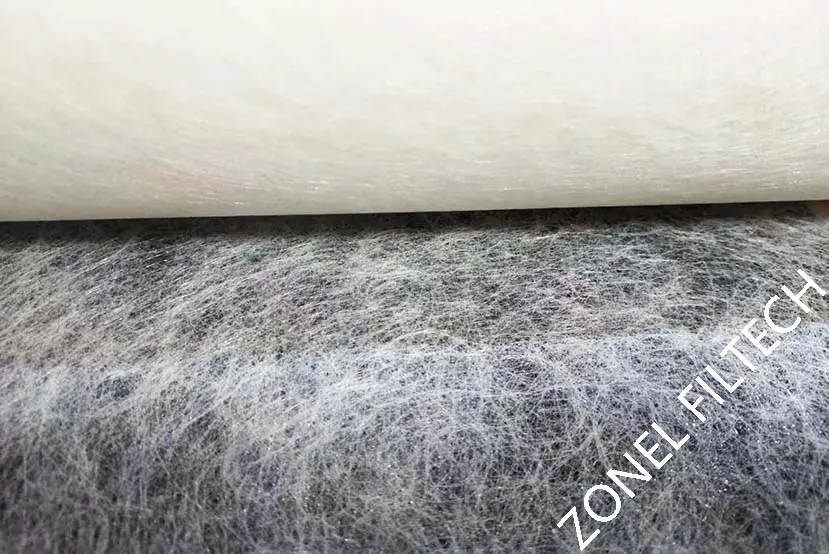

PET filament support nonwoven

The structure of the micro pore membrane pleated filter cartridge:

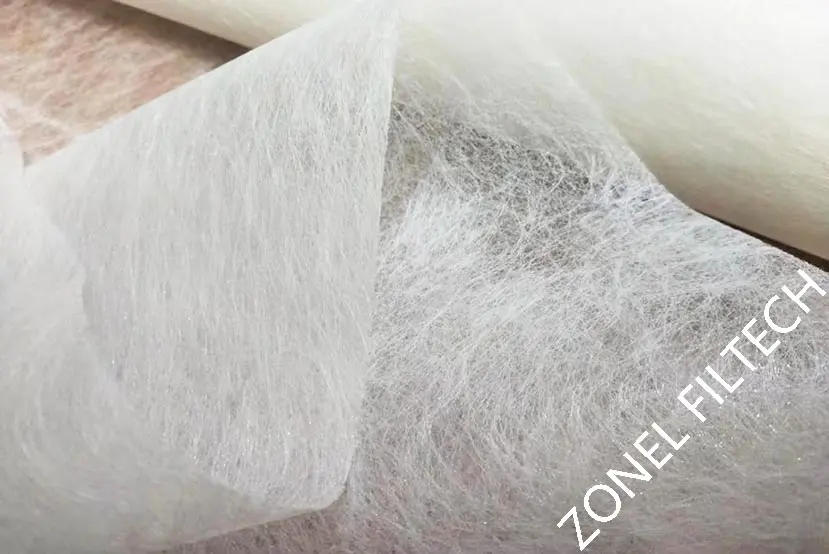

membrane support layer, filter membrane supporting material, Nonwoven support material, PET filament support nonwoven, nonwoven fabric support, reinforcement material, polyester spunbonded

Zonel Filtech developed the polyester blended spunbonded nonwoven for micro pore membrane pleated filter cartridge production.
The material of the membrane support layer: PET+PA
Color of the membrane support material: White.
Weight of the nonwoven support material: 30~120g/m2.
Width of the PET filament support nonwoven: standard width 1.5 meters, special widths can be customized.

membrane support layer, filter membrane supporting material, Nonwoven support material, PET filament support nonwoven, nonwoven fabric support, reinforcement material, polyester spunbonded

The properties of the nonwoven fabric support from Zonel Filtech:
High tensile strength, stable size, ideal reinforcement material;
Good stiffness, suitable for pleating works and ideal support material for filter membrane;
Good air/ water permeability, lower resistance, make the filter cartridge not easy to be blocked, durable.

membrane support layer, filter membrane supporting material, Nonwoven support material, PET filament support nonwoven, nonwoven fabric support, reinforcement material, polyester spunbonded
