Products & Technology


Polyester Air Slide Fabrics/Air Slide Belt/Air Slide Canvas

Zonel Filtech provide super quality polyester air slide fabrics for air slide systems / pneumatic conveyor systems and the homogenization silo, etc.

The polyester air slide belt from Zonel Filtech can be divided into polyester spun yarn air slide canvas, polyester filament air slide membrane and polyester nonwoven air slide cloth for different usages and requirements from the clients.

The filament polyester air slide fabric with a smooth surface and equal air permeability, strong construction, excellent for abrasion resistance, durable; the spun yarn polyester air slide belt with the same construction as the filament air side membrane, also offered widely for air slide solutions and mixing the powdered/granular in homogenization silo, with the competitive price; the nonwoven air slide belt, with the needle punched nonwoven construction (nonwoven polyester air slide cloth), easy installing, the width can be customized within 3.5 meters.

  • Pictures
  • Introduction
  • Technical data
  • Properties
  • Application
  • Brand and Certificate
Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.

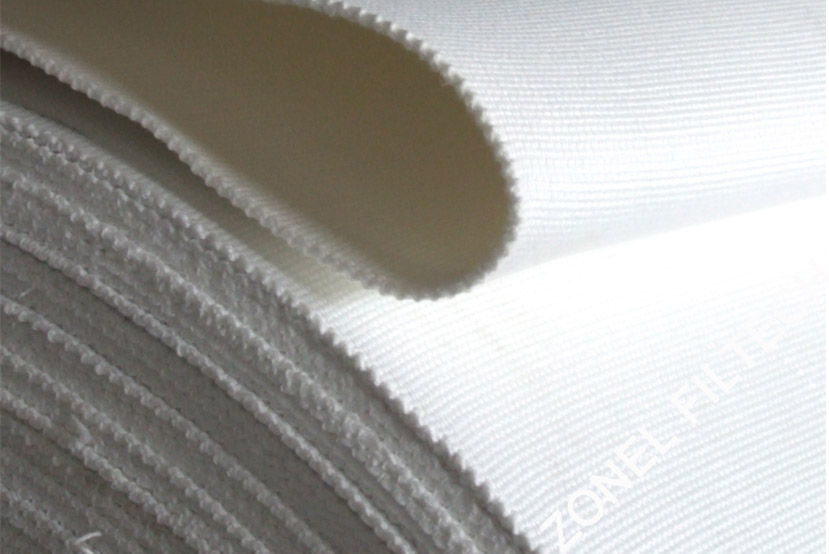

Polyester Air Slide Fabrics_Filament type.

  • Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.
    Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.

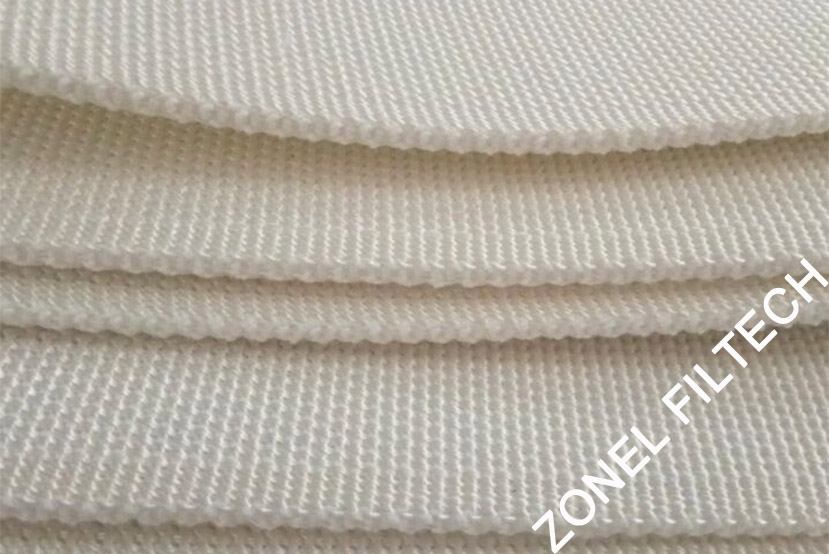

    Polyester Air Slide Fabrics_Filament type.
  • Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.
    Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.
    Polyester Air Slide Fabric_Spun Yarn Type.
  • Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.
    Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.

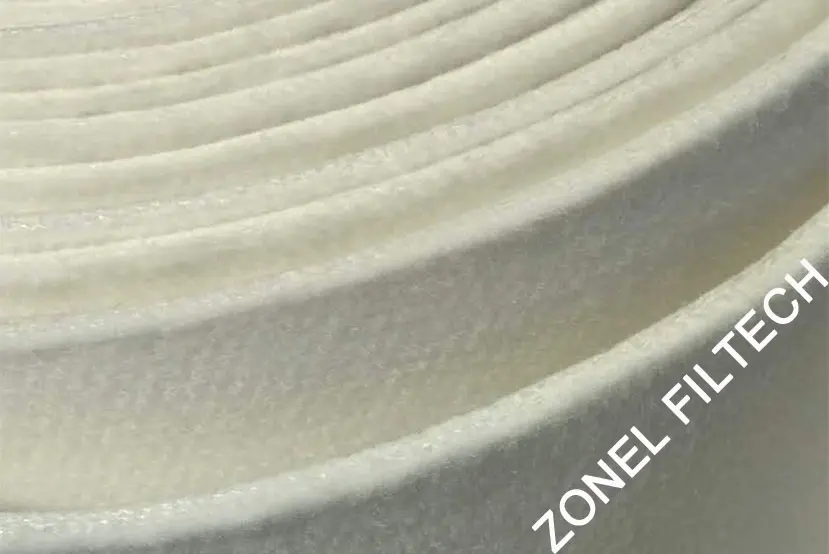

    Polyster air slide belt/air slide membrane_nonwoven type.
  • Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.
    Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.

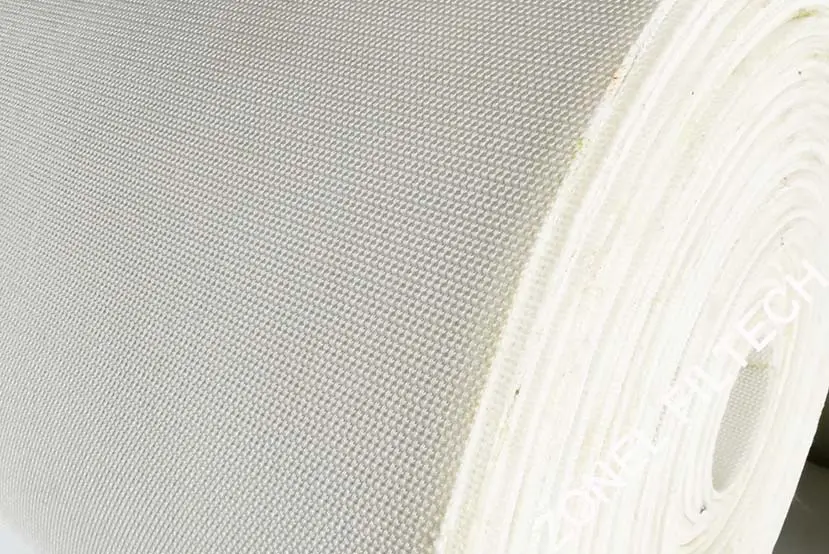

    Polyester filament air slide fabrics_roll material
  • Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.
    Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.

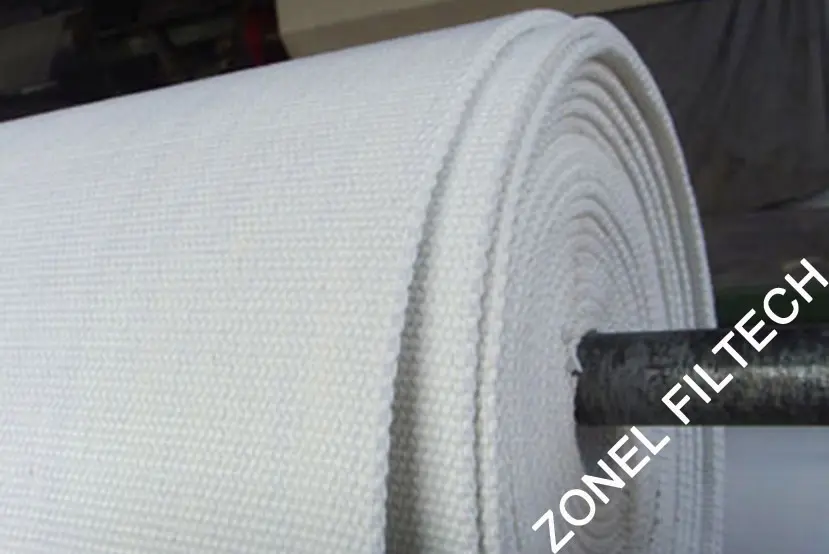

    Polyester spun yarn air slide belt, in rolls
  • Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.
    Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.

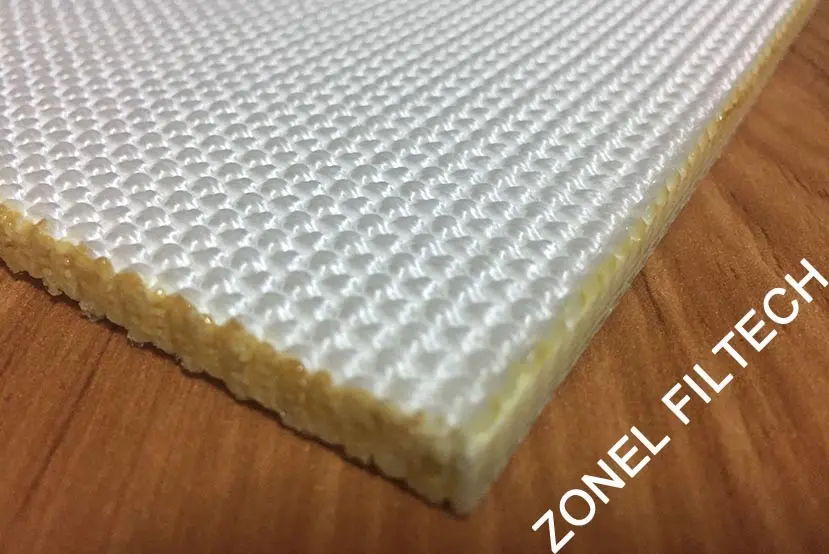

    Polyester filament air slide fabrics_ polyester and spun yarn blended.
  • Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.
    Polyester air slide fabric/air slide belt/air slide membrane/air slide canvas.

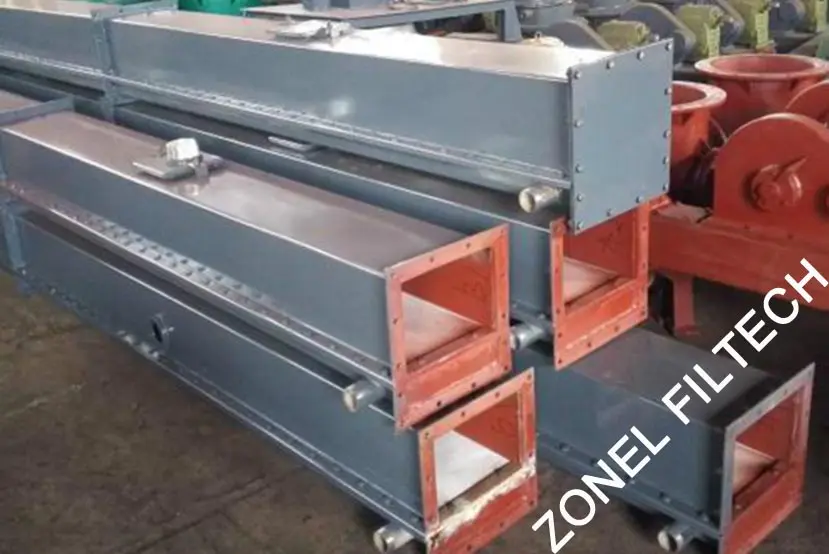

    Polyester air slide fabrics installed in air slide chute.
Polyester air slide fabric

General introduction of Polyester air slide fabric:
ZONEL brand high tensile strength air slide fabric is a belt canvas mainly used for pneumatic transmission of cement, bauxite, carbon black, gypsum, grain, flour and so on, as well as equipped to fluid bed and powder mixing tank / homogenization silo, which with a special and controllable air permeability can help to improve the transport efficiency, in the mean while reduce pollution, and also guarantee the uniformity of the mixed powders.

The principle of air slide: When transferring the powders, the air slide fabrics combined with pressed air in air slide chute and make the dry powder become to fluid particles, then the fluid particles will flow from the higher position to the lower position (destination) due to the gravity.

Zonel Filtech provide super quality polyester air slide fabrics for air slide systems / pneumatic conveyor systems and the homogenization silo.
The polyester air slide belt from Zonel Filtech can be divided into polyester spun yarn air slide canvas, polyester filament air slide membrane and polyester nonwoven air slide cloth for different usages and requirements from the clients.

Polyester air slide fabrics/polyester air slide membrane/polyester air slide belt

The filament polyester air slide fabric with a smooth surface and equal air permeability, strong construction, excellent for abrasion resistance, with the longest service life for the polyester material air slide fabrics.

Polyester air slide fabrics/polyester air slide membrane/polyester air slide belt

The spun yarn polyester air slide belt with the same construction as the filament air side membrane, also offered to various industries for dry particles conveying and mixing the material in homogenization silo, etc, but the service life shorter a little when compare to the filament one, but price cheaper some.

Polyester air slide fabrics/polyester air slide membrane/polyester air slide belt

Nonwoven air slide belt, with the needle punched nonwoven construction (nonwoven polyester air slide cloth), air permeability bigger, and softer, easy installing, and suitable for some small volume and light material conveying, which is the most economical solutions of the air slide fabric for the air slide systems.


Relevant products:
Nomex air slide fabric
Basalt air slide fabric
Air slide system
Air slide hose
Relevant specification of the polyester air slide fabric from Zonel Filtech:
Thickness of the polyester air slide fabric: 3~10 mm can be customized.
Width of the polyester air slide belt: max. 2.4 meters.
Air permeability: can be customized as requirements.
Tensile strength: > 5000N/4cm.
Operation temperature: -60 degree C to 150 degree C, max. peaks: 180 degree C.
The properties of the air slide membrane from Zonel Filtech:
1. Clear veins, stable size, high tensile strength, various materials for choosing according to the different requirements.
2. Equal air permeability, the tolerance of air resistance is within ±10%.
3. High temperature resistance, abrasion resistance, little hygroscopicity, corrosion resistance, lower adhesive capacity, never delamination, longer service life.
4. Smooth surface, 100% new materials, won't leak dust, green products.
5. The products applicable to convey the materials with the particle diameter < 4mm, temperature < 180degree C, the moisture content < 2%.
Main application of the polyester air slide belt from Zonel Filtech:
Cement industries: cement plant, bulk cement truck and ship;
Mining industries: alumina, lime, coal, phosphates, etc;
Chemical plants: soda, etc;
Power plant: coal, desulfurize, etc;
Food industries: flour, etc.
