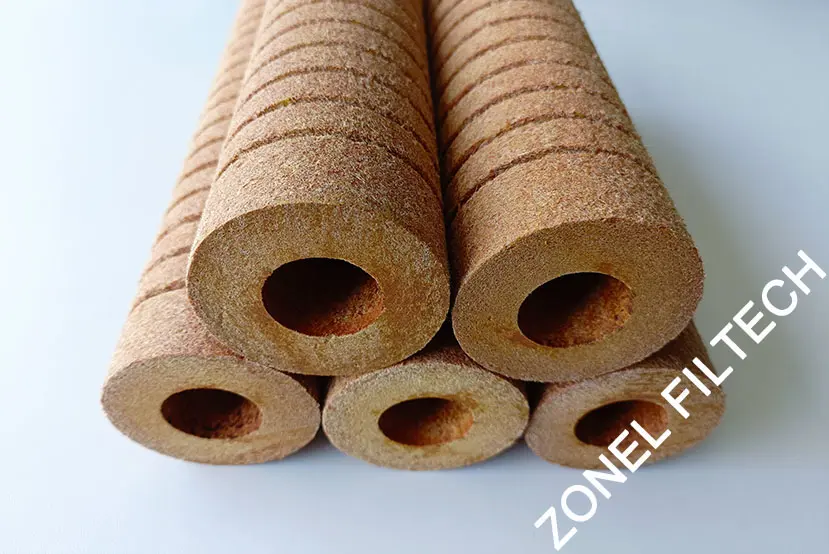

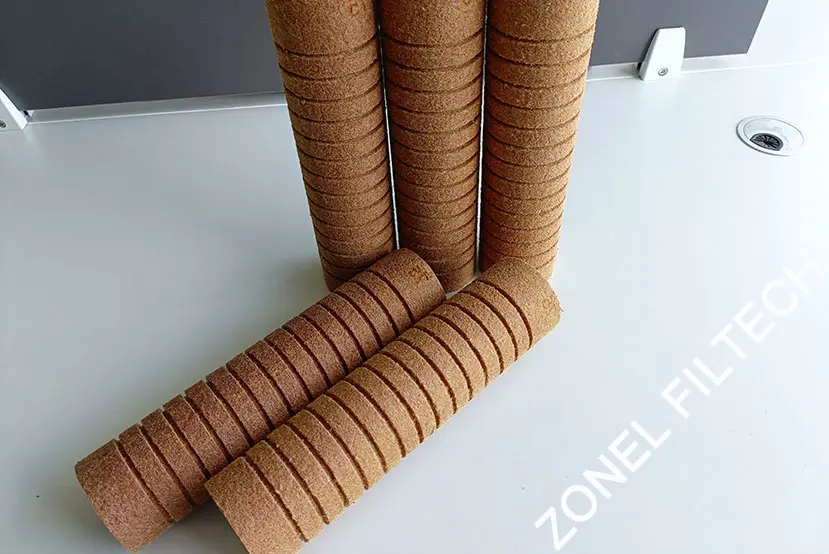

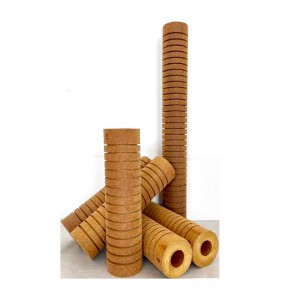

Phenolic resin filter cartridge
General introduction:

The phenolic resin filter cartridge which adopted the phenolic fiber blended with cohesive, hardener, stabilizer, and so on then sintered into the filter cartridges, to improve the strength of the phenolic fiber, which can blended with polyamide (5~10%) when production.

The phenolic resin filter cartridge from Zonel Filtech the fiber bonded outer to inner with gradually tighter construction, which makes them with bigger particle loading capacity, good strength, and durability.

Technical details:

1. The length of the filter cartridge:

10”, 20”, 30”, 40”

Special request can be customized.

2.The filter efficiency:

1micron, 3 micron, 5 micron, 10 micron, 15 micron, 25 micron, 50 micron, 75micron, 100micron, 125 micron, 150micron, 200 micron, 250micron.

3. Outer diameter: 65+/-2mm

4. Inner diameter: 29+/-0.5mm

5. Maximum operating temperature:

145 degree C.

6. Suggest flow volume(10”):

5micron: 22L/min

10micron: 31L/min

>50micron: 38L/min

The properties:

1. The sintered bonded method, with a higher pore rate, big liquid flow, equal pore size;

2. The outer to inner with gradually tighter construction makes the filter cartridges with bigger particles loading capacity, good strength, and durable;

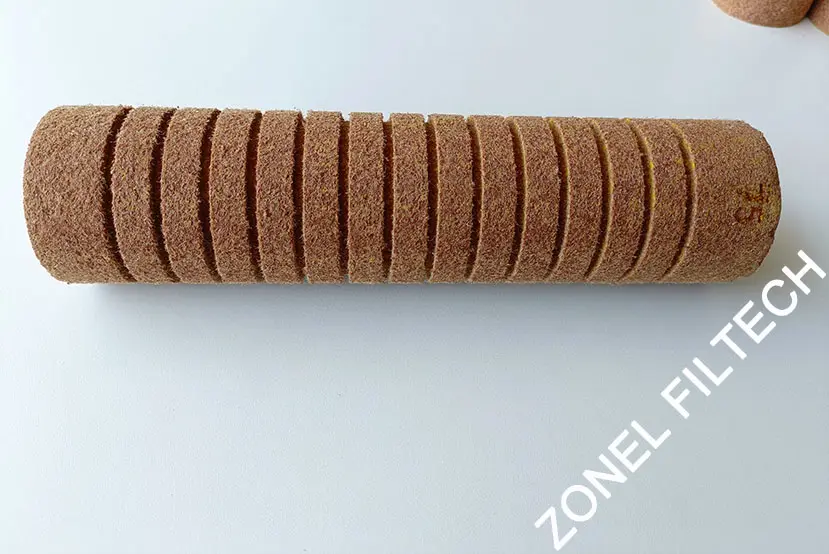

3.The surface of the filter cartridges with groove design, with the bigger filter surface;

4. With the AI auto production system, stable quality control and filter efficiency;

5. The phenolic resin filter cartridge is chemical resistant, wide applications;

6. Bonded with acrylic acid longer fiber makes the phenolic resin filter cartridge with a stable fiber layout, the fiber not easy to break and move, reducing the second pollution to the solution;

7. Insert the phenolic resin to make the filter cartridge stronger, which can stand a viscosity of up to 15000SSU (3200CKS);

8. The phenolic resin filter cartridge with an oxygen limit index of up to 34, is proof, the maximum operating temperature can be up to 145 degrees C;

Applications:

The phenolic resin filter cartridges are mainly used for the following solutions filtration:

Cars painting, electrophoretic paint, ink, printer ink, can coating paints, UV curing ink, conductive ink, various emulsion, color paste, liquid dye, organic solvents, as well as some special chemicals, mechanical wastewater treatment, etc.
