Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric

ZONEL brand high tensile strength air slide fabric is a belt canvas mainly used for pneumatic transmission of cement, bauxite, carbon black, gypsum, grain, flour and so on, as well as equipped to fluid bed and powder mixing tank / homogenization silo, which with a special and controllable air permeability can help to improve the conveying efficiency, in the mean while reduce pollution, and also guarantee the uniformity of the mixed powders.

Zonel Filtech provide good quality basalt filament air slide fabrics / basalt fluidization fabric for air slide systems and homogenization usage in high temperature occasion, the maximum temperature can be up to 700-degree C.

The Basalt Air Slide Fabric with the properties of smooth surface and equal air permeability, strong construction, excellent for heat resistance, with the long service life with a perfect performance.

  • Pictures
  • Introduction
  • Technical data
  • Properties
  • Application
  • Brand and Certificate
Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric.

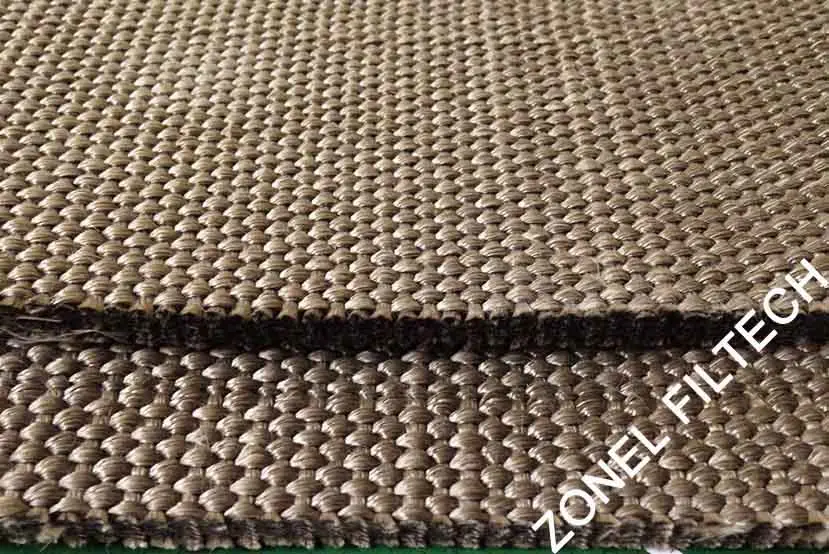

Basalt Air Slide Fabrics

  • Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt Air Slide Fabrics
  • Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt Air Slid Belt
  • Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt fluidization cloth
  • Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt Air Slide Belt
  • Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt Air Slide Fabric/Basalt Air slide Belt/Basalt Air Slide Membrane/Basalt fluidization fabric
    Basalt Air Slide Canvas
General introduction of Basalt Air slide Fabric:

ZONEL brand high tensile strength air slide fabric is a belt canvas mainly used for pneumatic transmission of cement, bauxite, carbon black, gypsum, grain, flour and so on, as well as equipped to fluid bed and powder mixing tank / homogenization silo, which with a special and controllable air permeability can help to improve the transport efficiency, in the mean while reduce pollution, and also guarantee the uniformity of the mixed powders.

The principle of air slide: When transferring the powders, the air slide fabrics combined with pressed air in air slide chute and make the dry powder become to fluid particles, then the fluid particles will flow from the higher position to the lower position (destination) due to the gravity.

Zonel Filtech provide good quality basalt filament air slide fabrics / basalt fluidization fabricfor air slide systems and homogenization usage. The Basalt Air Slide Fabric with the properities of smooth surface and equal air permeability, strong construction, excellent for heat resistance, with the long service life with a perfect performance.


Relevant products:

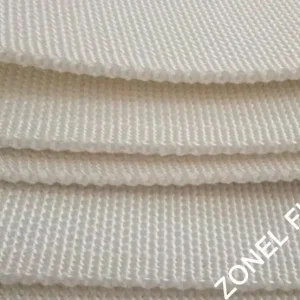

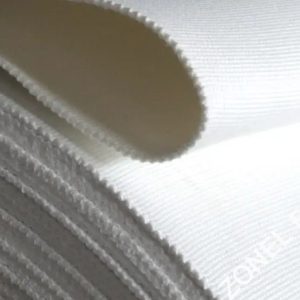

Polyester air slide fabric
Nomex air slide fabric

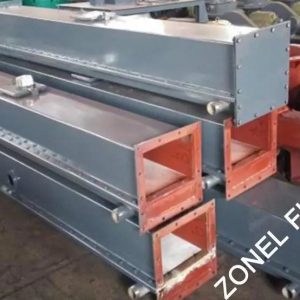

Air slide system

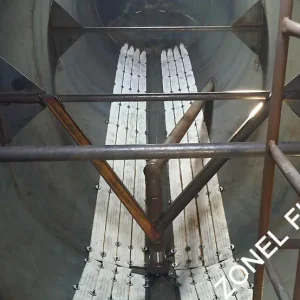

Air slide hose
Relevant specification of the basalt air slide belt from Zonel Filtech:
Thickness of the basalt air slide belt: 3~10 mm can be customized.
Width of the basalt air slide membrane: max. 2.4 meters.
Air permeability of the basalt air slide cloth: can be customized as requirements.
Tensile strength of basalt air slide fabric: > 5000N/4cm.
Operation temperature of basalt air slide belt: -60 degree C to 700 degree C, max. peaks: 750 degree C.
The properties of the basalt air slide membrane from Zonel Filtech:
1. Clear veins, stable size, high tensile strength, various materials for choosing according to the different requirements.
2. Equal air permeability, the tolerance of air resistance is within ±10%.
3. High temperature resistance, abrasion resistance, little hygroscopicity, corrosion resistance, lower adhesive capacity, never delamination, longer service life.
4. Smooth surface, 100% new materials, won't leak dust, green products.
5. The products applicable to convey the materials with the particle diameter < 4mm, temperature < 750degree C, the moisture content < 2%.
Main application of the basalt air slide canvas from Zonel Filtech:
For air sliding or homogenization usage in some high temperature occasions that more than 250 degree C.
