Anti-static filter cloth/ Anti-static filter bags for dust collection

General introduction of the anti-static filter material:
The anti-static filter cloths from Zonel Filtech were designed for dust collection in the occasion of dust air with some flammable or explosive materials, such as flour dust, aluminum dust, coal dust, and some explosive powder materials in the industries such as chemical, etc.

As we know, when the density of the flammable dust to a certain point, a small spark may cause an explosion and fire, so when we design the filter materials we have to take them into the consideration.

Zonel Filtech designed the anti-static needle felt filter cloth series according to different applications. Include wire line anti-static needle felt, square line anti-static needle felt, conductive fiber blended needle felt filter cloth (include S.S. fiber blended needle felt filter cloth, carbon fiber blended anti-static felt, modified conductive polyester anti-static needle felt filter cloth), etc.

We offer both of anti-static filter cloth rolls and ready-made filter bags, any help needed, welcome to contact Zonel Filtech!

Relevant products:
Acrylic needle felt filter cloth and filter bag
Polyester needle felt filter cloth and filter bag

Relevant specifications for the anti-static nonwoven media
Material for the antistatic nonwoven media available: polyester anti-static felt, polypropylene (PP) anti-static needle felt, PPS anti-static filter cloth, acrylic anti-static filter cloth, etc.

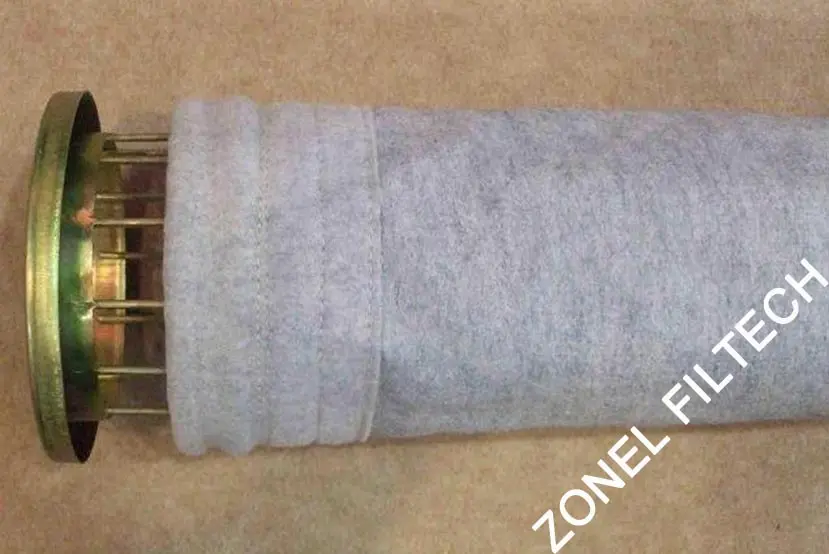

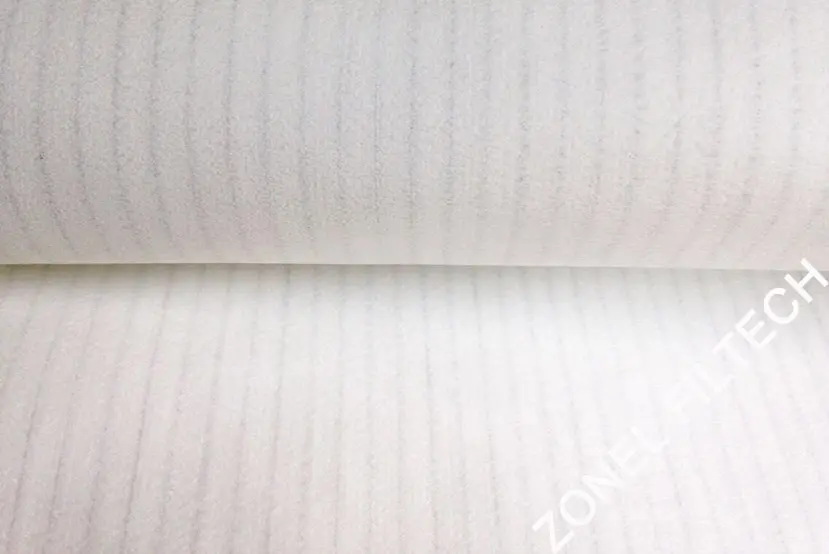

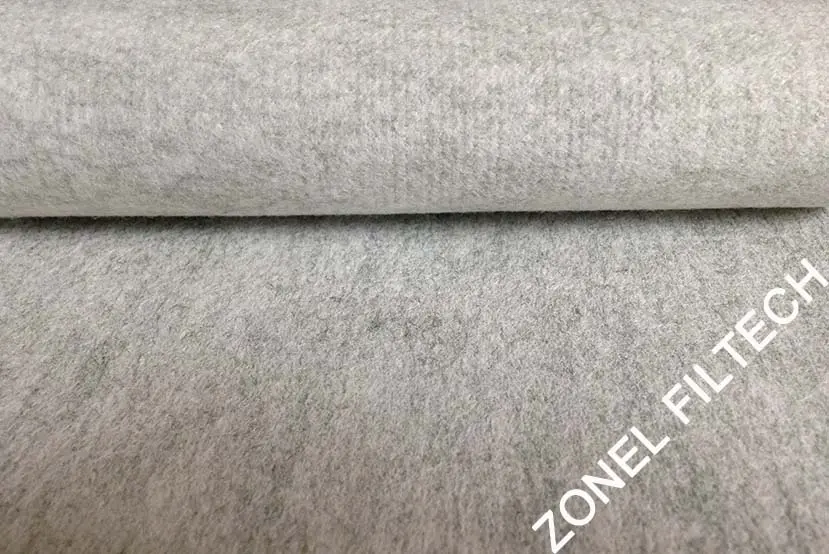

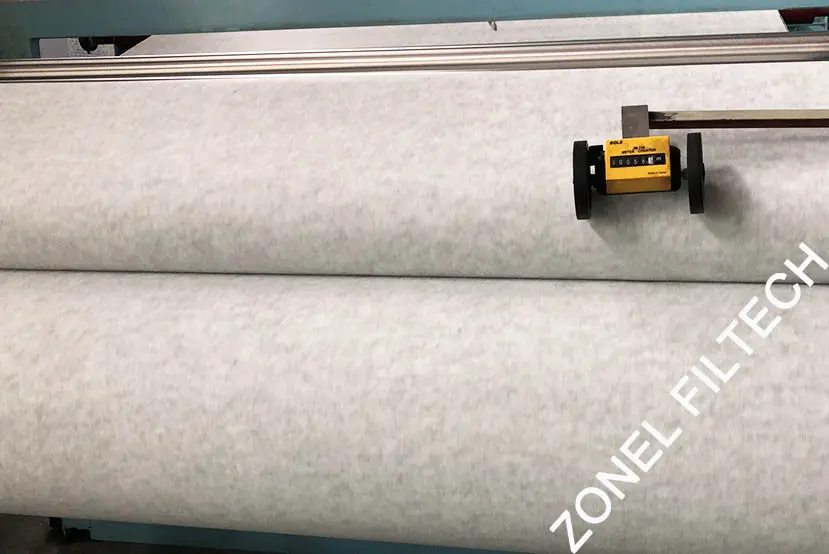

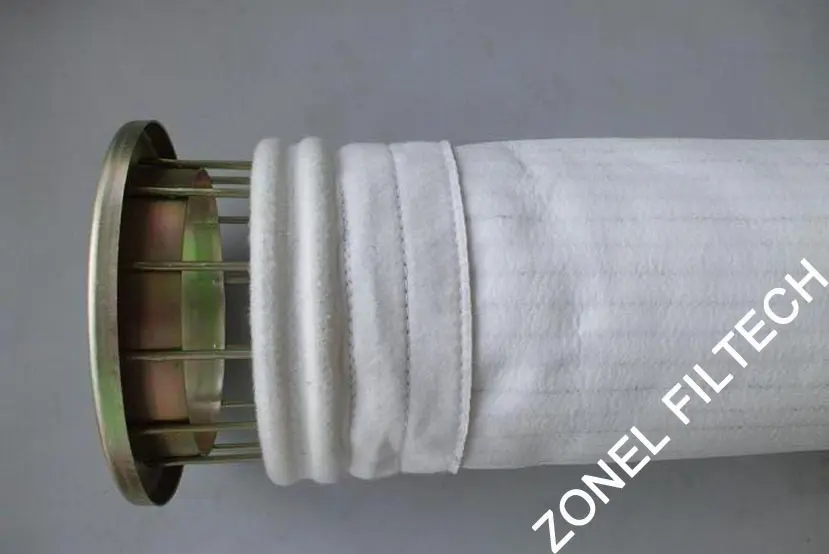

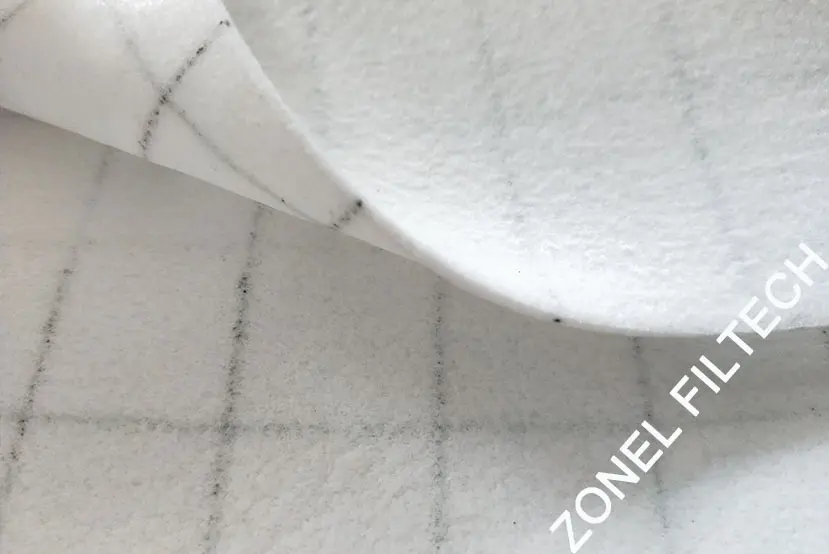

Anti-static style: scrim anti-static (wireline and square cells type), blended anti-static (blended with modified anti-static fiber, carbon fiber anti-static filter material, stainless steel fiber, copper fiber, etc)
Weight: 300~650g/sq.m
Service Temperature: Continues: <130℃, Peaks: 150℃; Continues: <200℃, Peaks: 220℃

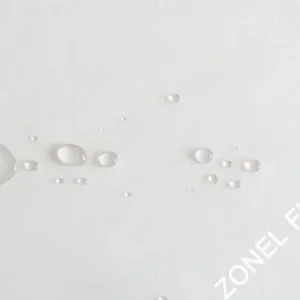

Surface treatment for choice: singed & glazed, heat set, water and oil repellence, PTFE suspension bath, PTFE membrane.

The properties of the anti-static needle felt
1. With the sound finish treatment, the general filtration Efficiency can be up to 99.999%.
2. Special requirements on weight, air permeability, etc can be customized.
3. Excellent Anti-Abrasion
4. Uniform sound quality, and long service life.
5. Economical

Main applications of the anti-static filter bags
1. For flammable dust collectors in cement plants, power plants, and metallurgy industries, that may need fossil fuels for their boilers. Such as the coal mills (coal mills filter bag) in these plants.
2. For explosive dust collection in machinery plants. Such as polishing the accessories made of aluminum, copper, etc.
3. For powder collection in food plants, such as flour mills, coffee, dried milk (milk powder), etc.
4. Petrochemicals and other industries may need to filter the flammable particles.
